Description
Application: Universal - Bare Rear
End For Custom Build - Mild Steel
If you have questions regarding rear ends and their options read the "Ordering A Rear End - The Master FAQ List" article in our Support Center.

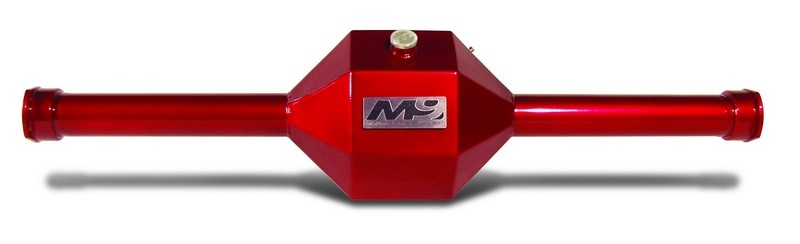

Moser Engineering M9 Bare Housing and Axles Package: If you're looking for everything but the center section then this is the package for you!
The Moser Engineering M9 rear end housings are made to not only withstand the demands of high horsepower applications, but also finish off the back half of any show vehicle with style.
The Moser M9 bolt-in rears are made from 1/8 thick CNC laser cut and formed mild steel, which is fabricated from one triangulated piece of metal. Combine that with a 3/8" thick face plate, and standard internal gussets and bulk heads and the M9 is ready to take on the toughest racing conditions. Also included are custom machined fill and drain vent, and wheel stud kit.

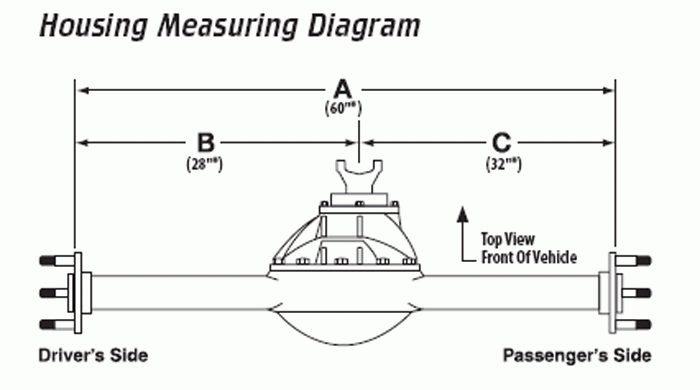

This is a "Bare" rear end, meaning there are no suspension mounting brackets installed. Use this rear end for custom applications where you will be custom building your suspension or adapting this rear end to a vehicle that does not have a bolt in ready rear end available. Look at the second picture listed to see the dimensions we need to know for the length of the rear end and then fill them in to the corresponding option boxes.
This rear end assembly will ship to you unassembled. You'll get the housing and axles in two seperate containers. This makes it easy to do the fabrication work you need to do to the housing, and then once completed you can slide in the axles and bolt in your center section and you're ready to roll!
Build Specifications:
- 3.00 x .250 DOM axle tubes
- Powder coating available
- Your choice of housing ends to match your brake type
- Made from 1/8 thick cnc laser cut and formed mild steel
The M9 is available with many options, please select the components you wish to have
your rear built with from the drop down option boxes. If you have any questions on the best set up for your application, email our tech department for assistance in making the right choices.
Shipping: The Moser M9 rear ships via UPS Ground.
